Security Directory (Authenticode)¶

The security directory holds the file's Authenticode signatures. Signatures are a trust signal that attackers work hard to fake: they self-sign, steal or buy certificates, and graft valid signatures onto modified files. PPEE parses every signature on every platform, without calling any OS APIs, so you can triage signatures in a Linux sandbox or a CI container.

How the structure works¶

Certificate table (at DataDirectory[4] file offset)
└── WIN_CERTIFICATE  (dwLength, wRevision 0x0200, wCertificateType 0x0002 = PKCS#7)
    └── PKCS#7 SignedData
        ├── SpcIndirectDataContent  → digest algorithm + the image's Authenticode hash ("embedded digest")
        ├── SignerInfo              → program name, publisher link, signature
        ├── certificates            → signer certificate + chain
        ├── counter-signature / RFC 3161 token → timestamp
        └── nested signature(s)     → e.g. a SHA-256 signature inside a SHA-1 one (dual signing)

The Authentihash is a hash of the image that skips CheckSum, the security directory entry and the certificate table itself. Signing stores it as the embedded digest, so recomputing it tells you whether the signed bytes were modified.

What PPEE shows¶

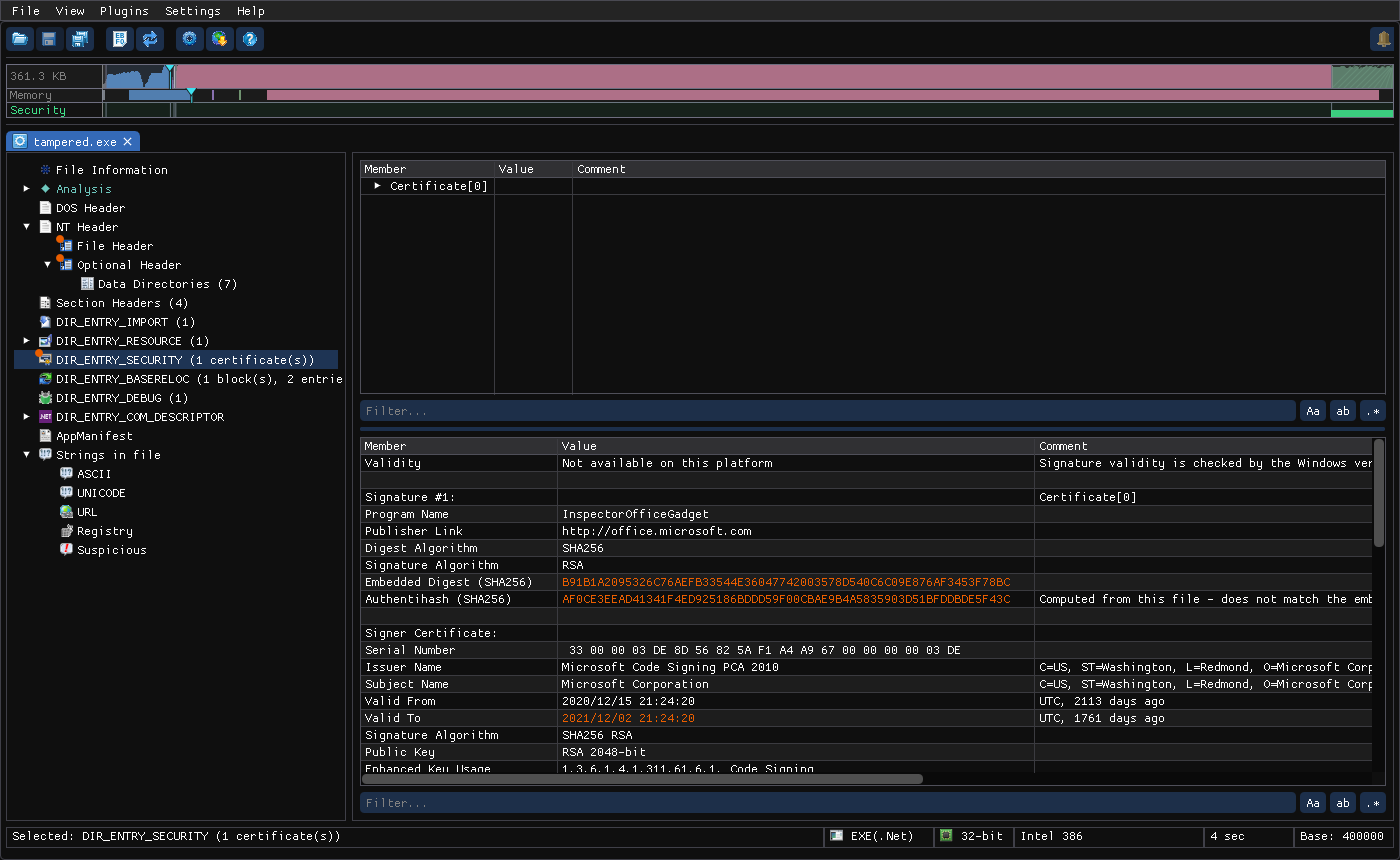

The screenshot shows a Microsoft-signed sample whose embedded digest and computed Authentihash differ (highlighted, with the comment), and a signer certificate that expired 1761 days ago. An expired certificate isn't suspicious by itself when the signature has a trusted timestamp, but a digest mismatch always is.

The directory entry itself is also checked: a Security table whose offset or end lies beyond the end of the file, or that isn't 8-byte aligned, is highlighted in the Data Directories list.

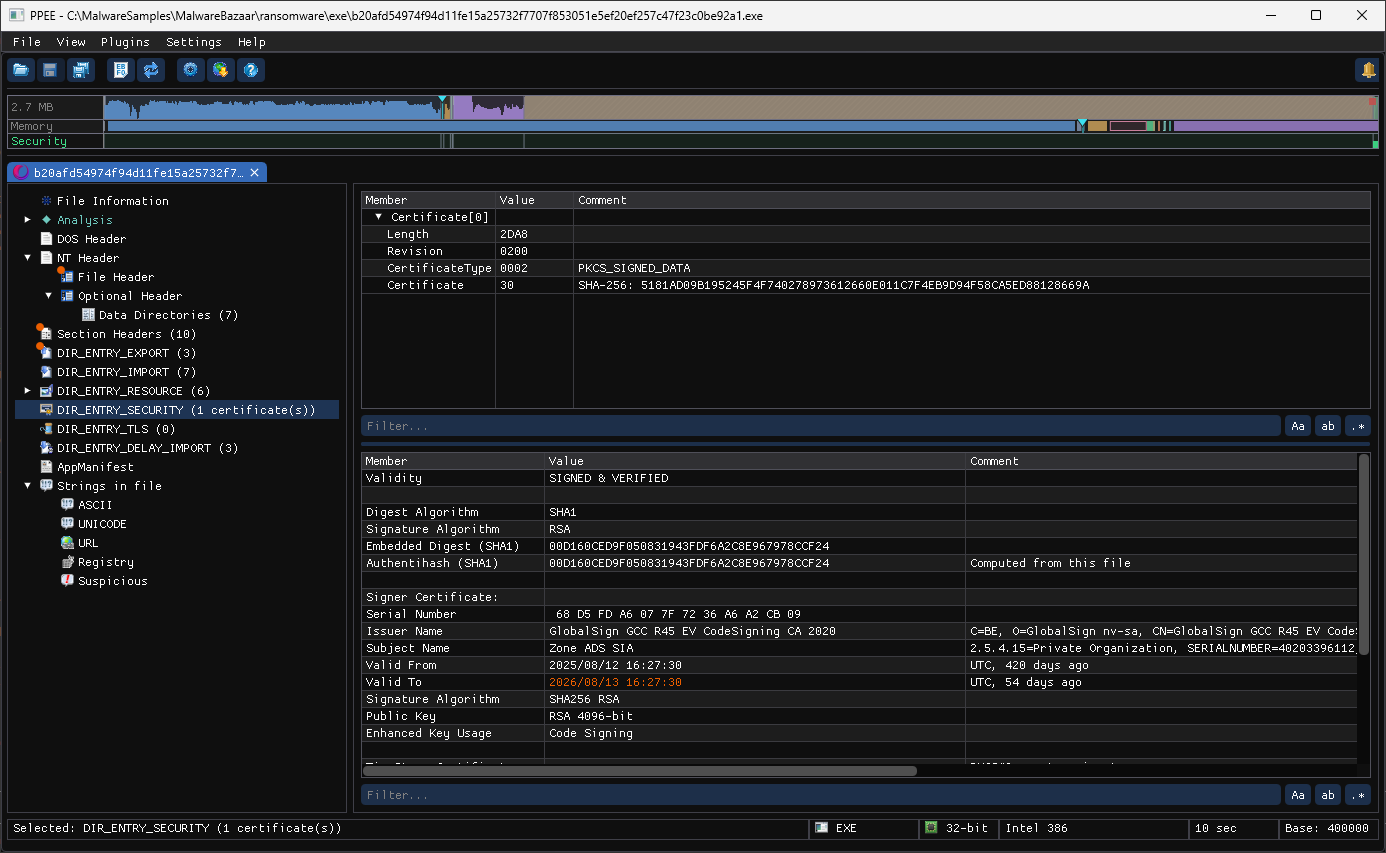

Validity on Windows¶

On Linux and in Docker, validity reads Not available on this platform. Integrity (embedded digest vs Authentihash), signer, chain and timestamp details are identical on every platform.

Reading signatures like an analyst¶

CLI and JSON¶

$ ppee-cli --security 847d8f49….exe
Security (certificate table): 1 entrie(s)
  offset=2DB000 length=2432 revision=0200 type=0002 sha256=417C5AC0038A8E7912703191B4F4B9F25D6FB2E6652E27045E944FF80351EB8E
  Validity: Not available on this platform -- Signature validity is checked by the Windows version of ppee
  Signature #1 (certificate[0])
    Digest Algorithm: SHA1
    Embedded Digest (SHA1): 92522BB8270AC121C54FF11FCAD37AE131B3AF61
    Authentihash (SHA1): 92522BB8270AC121C54FF11FCAD37AE131B3AF61
    Signer Certificate:
      Issuer Name: jaweralima.com (C=US, ST=bId7Hmyw, L=IsolE, O=421ZtfNiHkua2p, CN=jaweralima.com)
      Subject Name: jaweralima.com (C=US, ST=bId7Hmyw, L=IsolE, O=421ZtfNiHkua2p, CN=jaweralima.com)
      Valid: 2026/08/05 07:25:56 - 2027/08/05 07:25:56 UTC
      Enhanced Key Usage: 1.3.6.1.5.5.7.3.1, 1.3.6.1.5.5.7.3.2

PS C:\> ppee-cli.exe --security C:\MalwareSamples\847d8f4998d22fde37eb76f99b6d91012c42965b741fe2cec453ca5876cdf147.exe
C:\MalwareSamples\847d8f4998d22fde37eb76f99b6d91012c42965b741fe2cec453ca5876cdf147.exe: 2996608 bytes, PE32+

Security (certificate table): 1 entrie(s)
  offset=2DB000 length=2432 revision=0200 type=0002 sha256=417C5AC0038A8E7912703191B4F4B9F25D6FB2E6652E27045E944FF80351EB8E
  Validity: Broken
  Signature #1 (certificate[0])
    Digest Algorithm: SHA1
    Signature Algorithm: RSA
    Embedded Digest (SHA1): 92522BB8270AC121C54FF11FCAD37AE131B3AF61
    Authentihash (SHA1): 92522BB8270AC121C54FF11FCAD37AE131B3AF61
    Signer Certificate:
      Serial Number:  24 31 0E CA B7 5B FF EA
      Issuer Name: jaweralima.com (C=US, ST=bId7Hmyw, L=IsolE, O=421ZtfNiHkua2p, CN=jaweralima.com)
      Subject Name: jaweralima.com (C=US, ST=bId7Hmyw, L=IsolE, O=421ZtfNiHkua2p, CN=jaweralima.com)
      Valid: 2026/08/05 07:25:56 - 2027/08/05 07:25:56 UTC
      Signature Algorithm: SHA256 RSA
      Public Key: RSA 4096-bit
      Enhanced Key Usage: 1.3.6.1.5.5.7.3.1, 1.3.6.1.5.5.7.3.2

Read it against the table above: digests equal (intact), issuer = subject (self-signed), random place names, TLS EKUs instead of code signing (1.3.6.1.5.5.7.3.3), no TimeStamp line. On Windows, validity reports Signature present but not trusted.

JSON: security → present, certificates[] (fileOffset, length, revision, certificateType, sha256), validity (available, result, comment), signatures[] (nested, programName, digestAlgorithm, embeddedDigest, authentihash, signerCertificate{…}, timestamp{kind, date, certificate}).

Hunting recipes¶

# One-line verdict per signature
ppee-cli --json --security f.exe | jq -r '.security.signatures[] | [
  (if .embeddedDigest == .authentihash then "INTACT" else "MODIFIED" end),
  (if .signerCertificate.subjectName == .signerCertificate.issuerName then "SELF-SIGNED" else "CA" end),
  .digestAlgorithm, (.timestamp.kind // "NO-TIMESTAMP"), .signerCertificate.subjectName] | @tsv'

# Tampered signed files in a folder
for f in samples/*; do
  ppee-cli --no-similarity --json --security "$f" 2>/dev/null | jq -r --arg f "$f" \
    'select(.security.present) | select([.security.signatures[] | .embeddedDigest != .authentihash] | any) | "MODIFIED\t\($f)"'
done

# Group a sample set by signer (spot a certificate used across a campaign)
for f in samples/*; do ppee-cli --no-similarity --json --security "$f" 2>/dev/null \
  | jq -r '.security.signatures[0].signerCertificate | "\(.serialNumber)\t\(.subjectName)"'; done | sort | uniq -c | sort -rn

# Anything after the certificate table?
f=sample.exe; ppee-cli --json --security "$f" | jq --argjson size "$(stat -c %s "$f")" \
  '.security.certificates[-1] as $c | def h: ascii_downcase | explode | reduce .[] as $x (0; . * 16 + (if $x >= 97 then $x - 87 else $x - 48 end));
   {tableEnd: (($c.fileOffset | h) + $c.length), fileSize: $size, trailingBytes: ($size - (($c.fileOffset | h) + $c.length))}'

MCP: check_signature · Related: --security · CI: require a signature · Authentihash

References¶

• Microsoft PE format specification, attribute certificate table: the layout of the certificate table this page reads.
• Authenticode signing overview (Microsoft): how signatures and timestamps are produced and verified.
• SignTool (Microsoft): signs a file again after an edit, and verifies signatures.
• Get-AuthenticodeSignature (Microsoft PowerShell): Windows' own signature check, for comparison in scripts.
