Import Directory¶

The import directory tells the Windows loader which DLLs to map and which functions to resolve before the program starts. For an analyst it is usually the fastest static answer to "what can this binary do?". It is also one of the first structures packers and loaders tamper with.

How the structure works¶

flowchart LR
    DD["DataDirectory[1]"] --> D1["IMAGE_IMPORT_DESCRIPTOR<br/>kernel32.dll"]
    DD --> D2["IMAGE_IMPORT_DESCRIPTOR<br/>ws2_32.dll"]
    DD --> D0["all-zero terminator"]
    D1 -- OriginalFirstThunk --> INT["Import Name Table<br/>hint + name / ordinal<br/>(never changes)"]
    D1 -- FirstThunk --> IAT["Import Address Table<br/>overwritten by the loader<br/>with real addresses"]
    D1 -- Name --> N["'kernel32.dll'"]

The hint is an index into the exporting DLL's name table, a lookup speed-up. The loader falls back to a name search when it's wrong.

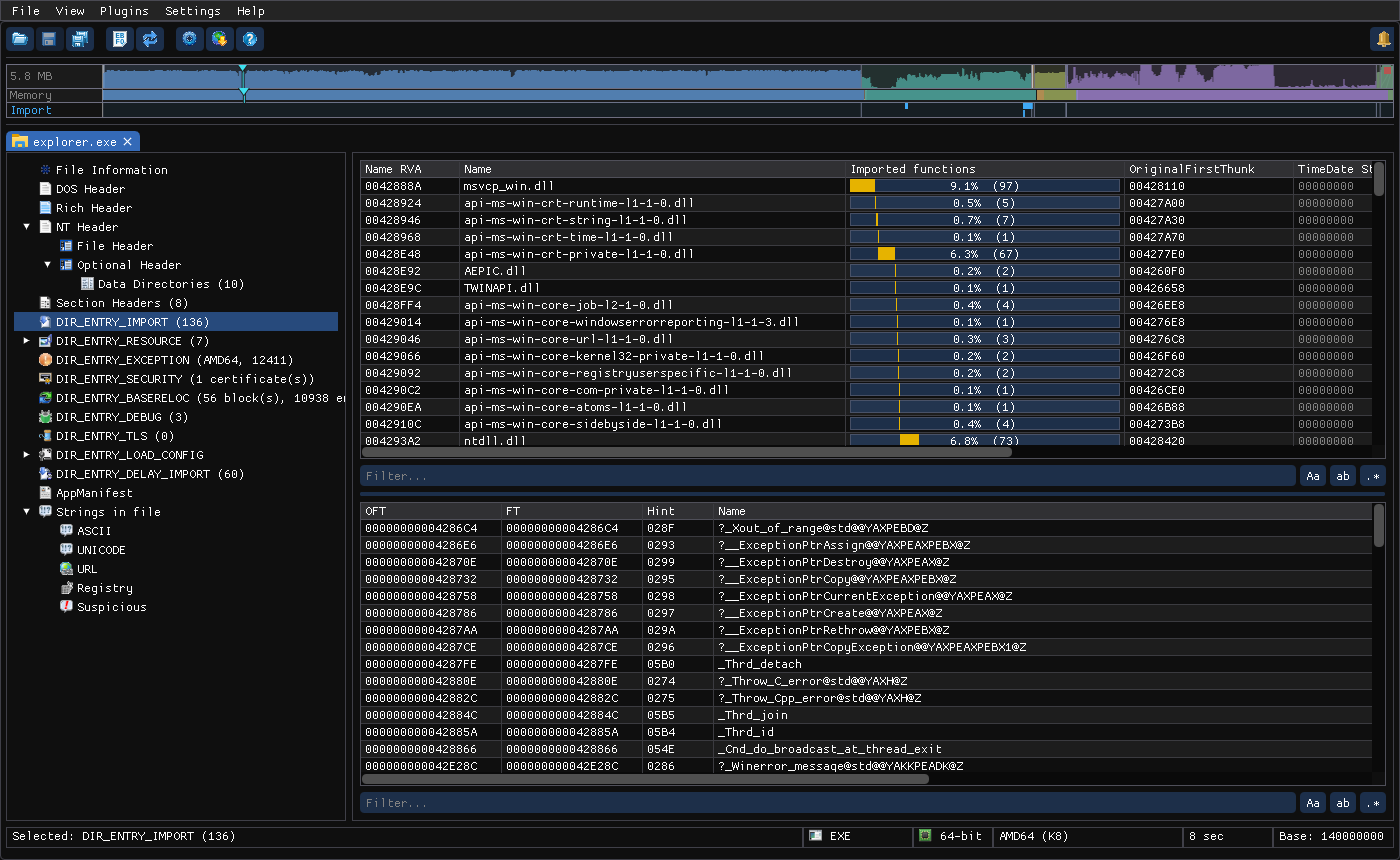

What PPEE shows¶

Upper list (one row per DLL): Name RVA · Name · Imported functions (count, with a bar showing its share of all imports) · OriginalFirstThunk · TimeDate Stamp · ForwarderChain · FirstThunk · Description (read from file).

Lower list (functions of the selected DLL): OFT · FT · Hint · Name · Demangled name (C++ symbols such as ?_Xout_of_range@std@@YAXPEBD@Z are shown readable) · Ordinal.

• Call sites column (x86/x64): how many instructions in the code call or read each function's IAT slot, filled in by the background code scan. 0 means imported but never called directly: common in packers, which call through registers. Click the corner mark for the list of sites.
• A module where PPEE stopped the walk (crafted import data: at most 200,000 functions per file, long names cut after 16M characters in total) says so in its name cell in the error color, and is flagged truncated in JSON.
• Follow in Hex View (Ctrl+H) on any cell jumps to its bytes: the descriptor, the thunk or the name string.
• Names, hints, thunks and descriptor fields are editable (see Editing and --set).

Reading imports like an analyst¶

Capability triage¶

Group the imported APIs by behavior. These combinations are strong signals:

CRYPT32.dll!CryptUnprotectData
bcrypt.dll!BCryptOpenAlgorithmProvider  BCryptSetProperty  BCryptGenerateSymmetricKey  BCryptDecrypt
WININET.dll!InternetOpenA  InternetConnectA  HttpOpenRequestA  HttpSendRequestA  InternetReadFile  …
KERNEL32.dll!LoadLibraryA  GetProcAddress  OpenProcess  CreateProcessA  IsDebuggerPresent

Packer and loader stubs¶

Packed binaries hide their real imports and resolve them at run time. Typical signs, all taken from real samples:

When you see this, the imports aren't the capability list. Check strings, resources and the entropy map in the navigator strip, and unpack before drawing conclusions.

ImpHash for clustering¶

fileInfo.impHash is the MD5 of the normalized dll.function list. Samples built from the same source and toolchain usually share it, even when every byte of their payload differs. See ImpHash and the similarity engine (Imp matches).

CLI and JSON¶

$ ppee-cli --imports explorer.exe
Imports (136 module(s)):
  msvcp_win.dll (OFT=428110 TimeDateStamp=0 FT=39FD10) - 97 function(s)
    ?_Xout_of_range@std@@YAXPEBD@Z (hint=655)
    _Thrd_detach (hint=1456)

JSON: imports[] → name, originalFirstThunk, timeDateStamp, forwarderChain, firstThunk, functions[] (hint + name, or ordinal). See the JSON reference.

Hunting recipes¶

# 1. Flat module!function list (good for diffing two variants)
ppee-cli --json --imports f.exe | jq -r '.imports[] | .name as $m | .functions[] | "\($m)!\(.name // "#\(.ordinal)")"' | sort

# 2. Injection pattern present?
ppee-cli --json --imports f.exe | jq -e '[.imports[].functions[].name // empty]
  | (index("VirtualAllocEx") and index("WriteProcessMemory") and (index("CreateRemoteThread") or index("QueueUserAPC")))' >/dev/null \
  && echo "possible injection"

# 3. Packer heuristic: few imports and high entropy
ppee-cli --json --imports --hashes f.exe | jq '{funcs: ([.imports[].functions[]] | length), dlls: (.imports | length),
  entropy: .fileInfo.entropy, suspicious: (([.imports[].functions[]] | length) < 25 and .fileInfo.entropy > 7.2)}'

# 4. Cluster a folder by ImpHash
for f in samples/*; do ppee-cli --no-similarity --json --hashes "$f" 2>/dev/null | jq -r '"\(.fileInfo.impHash)\t\(.path)"'; done \
  | sort | uniq -c -w32

# 5. Which samples talk to the network?
for f in samples/*; do
  ppee-cli --no-similarity --json --imports "$f" 2>/dev/null | jq -e '[.imports[].name | ascii_downcase]
    | any(. == "ws2_32.dll" or . == "wininet.dll" or . == "winhttp.dll")' >/dev/null && echo "$f"
done

With an AI assistant, list_imports returns the same data. Ask "group the imports of X by capability".

Related: --imports · Delay-load imports · Bound imports · Export directory · Load Config (CFG address-taken IAT)

References¶

• Microsoft PE format specification, import data: import descriptors, lookup tables and the import address table.
